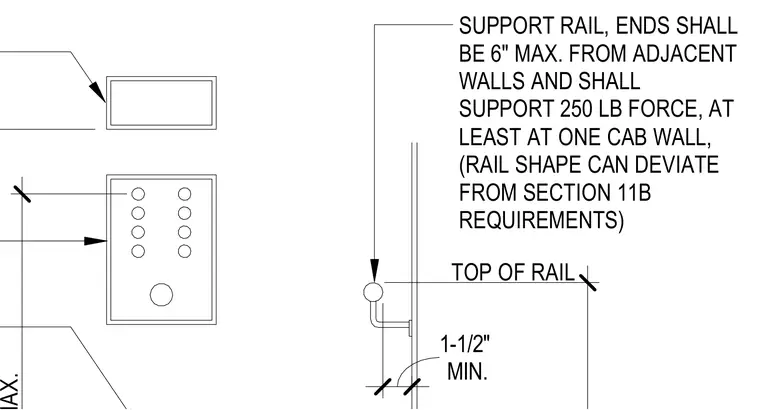

The support rail ends shall be a maximum of six inches from adjacent walls and must support a two hundred fifty pound force at least at one elevator cab wall. The top of the rail shall maintain a minimum one and one-half inch clearance. The rail shape may deviate from Section 11B requirements.
SUPPORT RAIL, ENDS SHALL BE 6" MAX. FROM ADJACENT WALLS AND SHALL SUPPORT 250 LB FORCE, AT LEAST AT ONE CAB WALL, (RAIL SHAPE CAN DEVIATE FROM SECTION 11B REQUIREMENTS) TOP OF RAIL MIN. 1-1/2"
