A metal deflection track is secured to the underside of a concrete-filled metal deck using Hilti X-U low-velocity powder-actuated drive fasteners with a one and one-quarter inch minimum embedment. Two number twelve sheet metal screws spaced at sixteen inches on center fasten the flat strap and backing plate assembly to the deflection track. A sound attenuation blanket fills the interior cavity of the partition framing. Five-eighths-inch gypsum board layers finish the partition faces, while a scheduled gypsum board ceiling terminates alongside the wall.

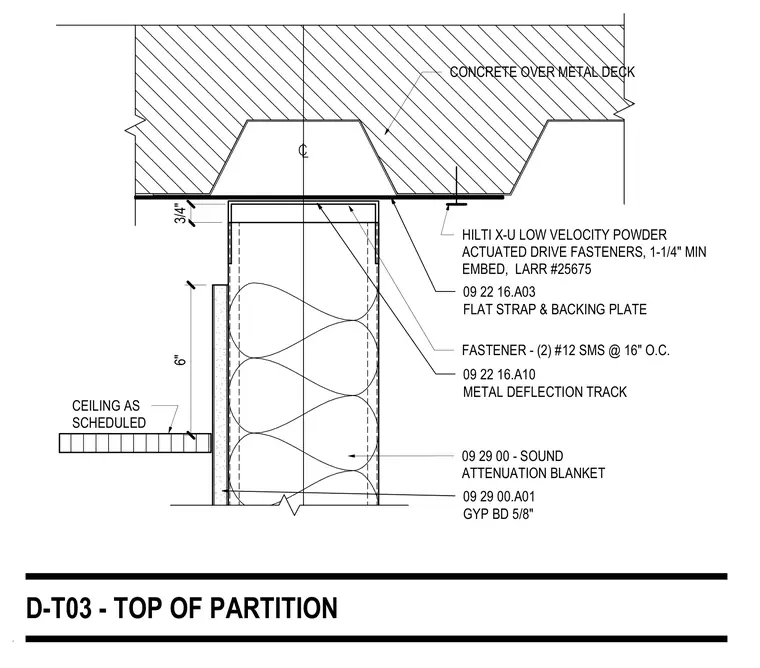

D-T03 - TOP OF PARTITION CONCRETE OVER METAL DECK FASTENER - (2) #12 SMS @ 16" O.C. 6" 09 29 00 - SOUND ATTENUATION BLANKET 09 22 16.A10 METAL DEFLECTION TRACK 09 29 00.A01 GYP BD 5/8" CEILING AS SCHEDULED 09 22 16.A03 FLAT STRAP & BACKING PLATE 3/4" HILTI X-U LOW VELOCITY POWDER ACTUATED DRIVE FASTENERS, 1-1/4" MIN EMBED, LARR #25675
