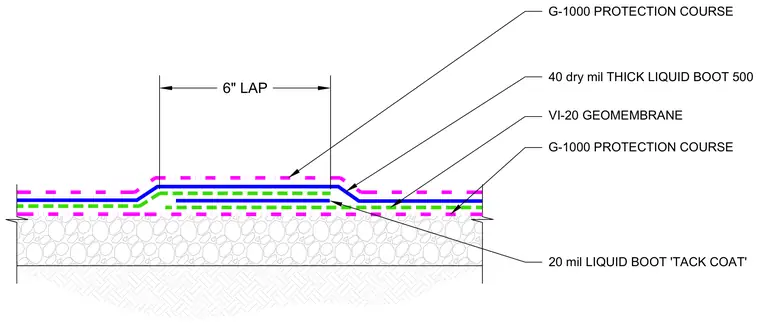

This waterproof membrane lap seam assembly incorporates a G-1000 protection course, forty dry mil thick Liquid Boot 500, a VI-20 geomembrane, and a twenty mil Liquid Boot tack coat at the six inch lap.
40 dry mil THICK LIQUID BOOT 500 G-1000 PROTECTION COURSE VI-20 GEOMEMBRANE 20 mil LIQUID BOOT 'TACK COAT' 6" LAP G-1000 PROTECTION COURSE
