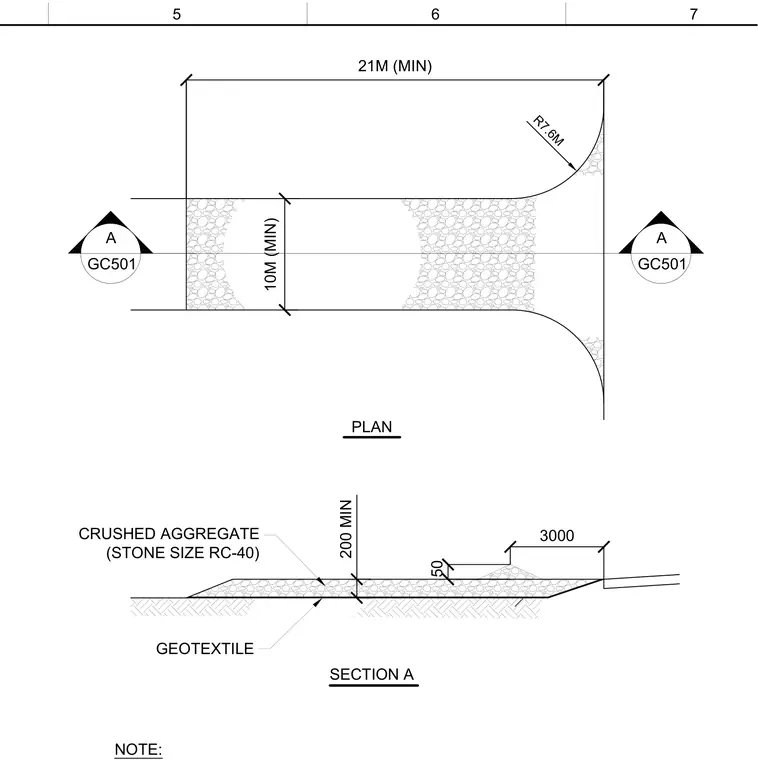

A stabilized construction entrance layout featuring crushed aggregate with stone size RC-40 placed over a geotextile fabric layer. The plan specifies a minimum width of 10 meters and a minimum length of 21 meters with a radius of 7.6 meters at the flare. The section indicates a minimum crushed aggregate thickness of 200 millimeters over the subgrade.
SECTION A PLAN CRUSHED AGGREGATE (STONE SIZE RC-40) GEOTEXTILE 50 3000 200 MIN 10M (MIN) 21M (MIN) NOTE: A GC501 R7.6M 5 6 7 A GC501
