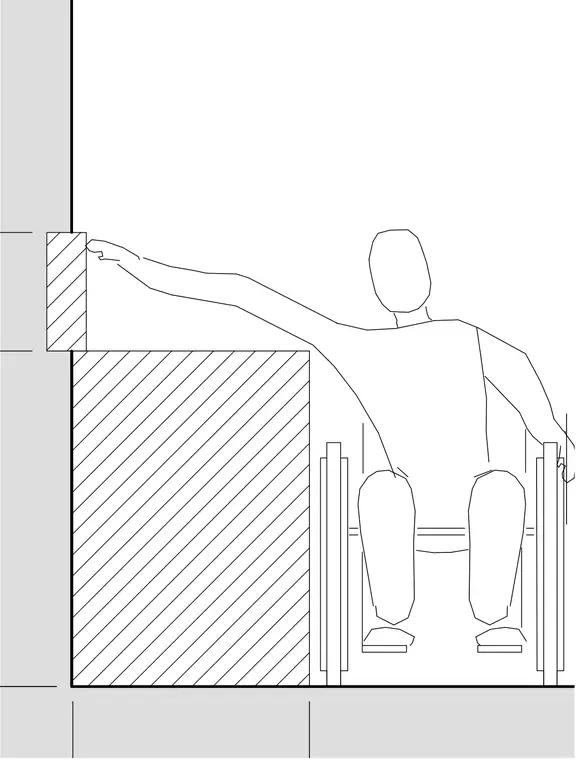

An unobstructed high side reach diagram establishes accessibility clearance criteria for a wheelchair user interacting with an obstacle. The person seated in a wheelchair reaches forward and upward to touch a high point above a counter-height obstruction against a vertical wall. Dimension markers indicate the vertical and horizontal clearance zones required for ADA compliance. This configuration applies to elements such as service counters, operable controls, and architectural fixtures.
