ADA Door Maneuvering Clearances for Manual Swinging Doors

About this detail

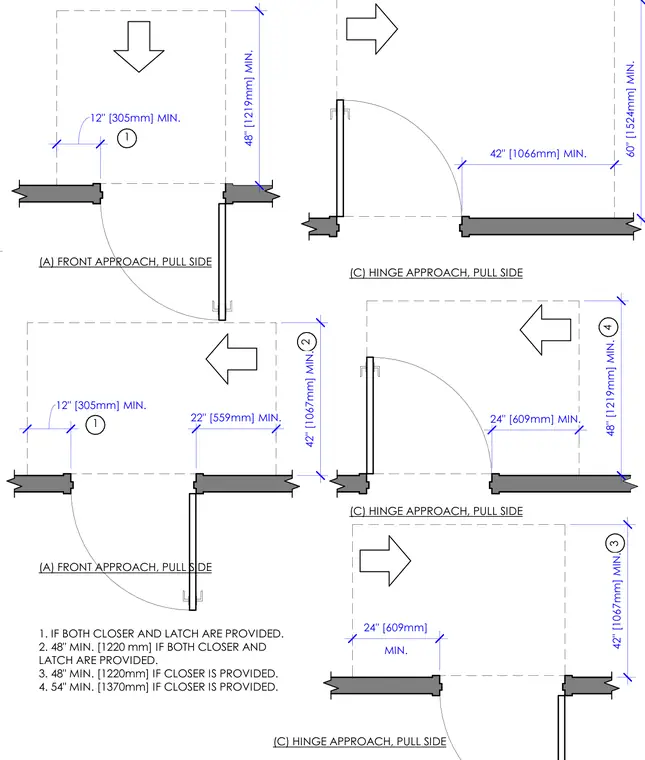

Accessibility maneuvering clearances for manual swinging doors on the pull side, detailing minimum dimensions for front and hinge approaches. Front approaches require a minimum depth of forty-eight inches perpendicular to the door and twelve inches past the latch side, adjusted when door closers or latches are present. Hinge approaches require a minimum width of forty-two to sixty inches parallel to the doorway depending on approach direction and hardware conditions. Reference notes provide dimensional adjustments required when closers and latches are both provided or when closers are used alone.
