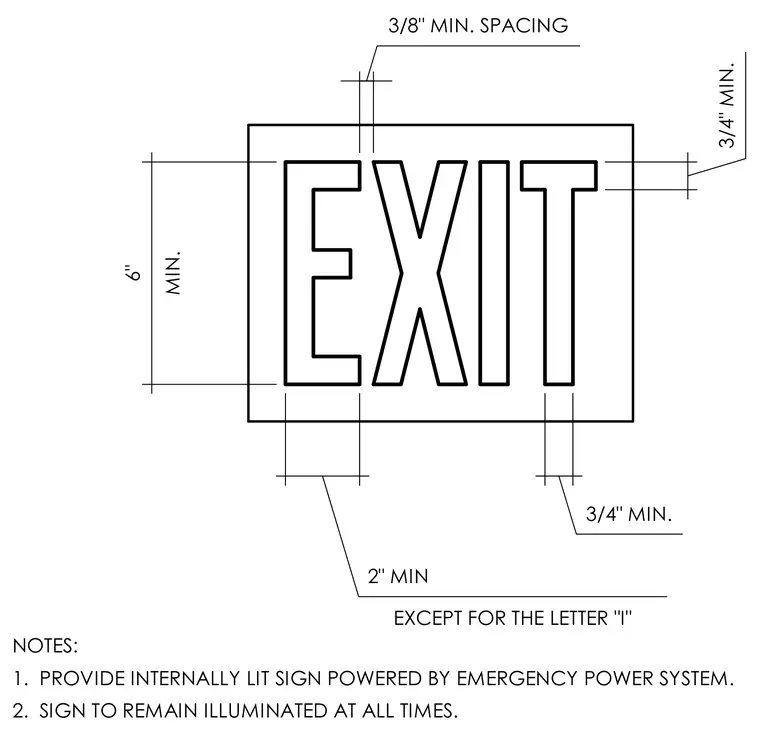

Exit sign lettering is defined by a minimum letter height of six inches with a three-quarter-inch minimum stroke clearance, two-inch minimum letter spacing except for the letter 'I', and a three-eighths-inch minimum spacing between letters. The sign requires internal illumination powered by an emergency power system and must remain illuminated at all times.
3/8" MIN. SPACING 6" MIN. 3/4" MIN. 3/4" MIN. 2" MIN EXCEPT FOR THE LETTER "I" NOTES: 1. PROVIDE INTERNALLY LIT SIGN POWERED BY EMERGENCY POWER SYSTEM. 2. SIGN TO REMAIN ILLUMINATED AT ALL TIMES.
