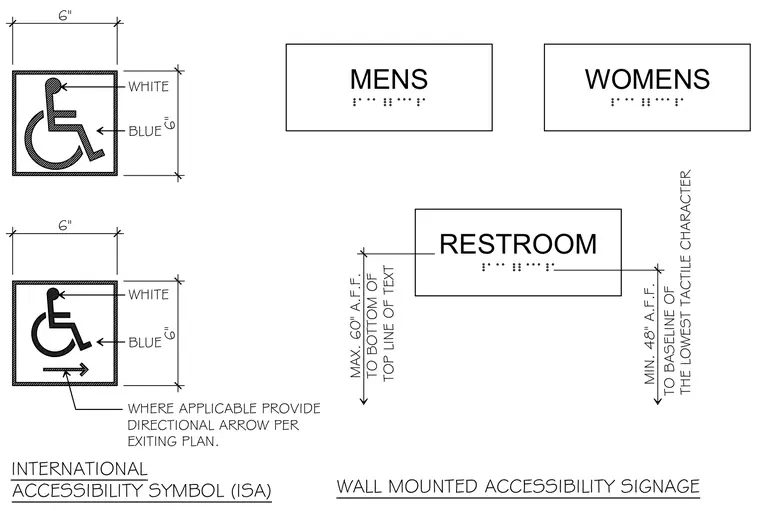

Wall mounted accessibility signage includes tactile text and braille for mens, womens, and general restrooms. The international accessibility symbol features white graphics on a blue background within a six-inch square frame, with optional directional arrows per the exiting plan. Installation requires the baseline of the lowest tactile character to be a minimum of 48 inches above finished floor, and the top line of text to be a maximum of 60 inches above finished floor.
INTERNATIONAL ACCESSIBILITY SYMBOL (ISA) WALL MOUNTED ACCESSIBILITY SIGNAGE WHERE APPLICABLE PROVIDE DIRECTIONAL ARROW PER EXITING PLAN. WHITE BLUE WHITE BLUE 6" 6" 6" 6" MIN. 48" A.F.F. TO BASELINE OF THE LOWEST TACTILE CHARACTER RESTROOM MAX. 60" A.F.F. TO BOTTOM OF TOP LINE OF TEXT WOMENS MENS
