UL System Firestop Penetration Detail C-AJ-0060

Elements

About this detail

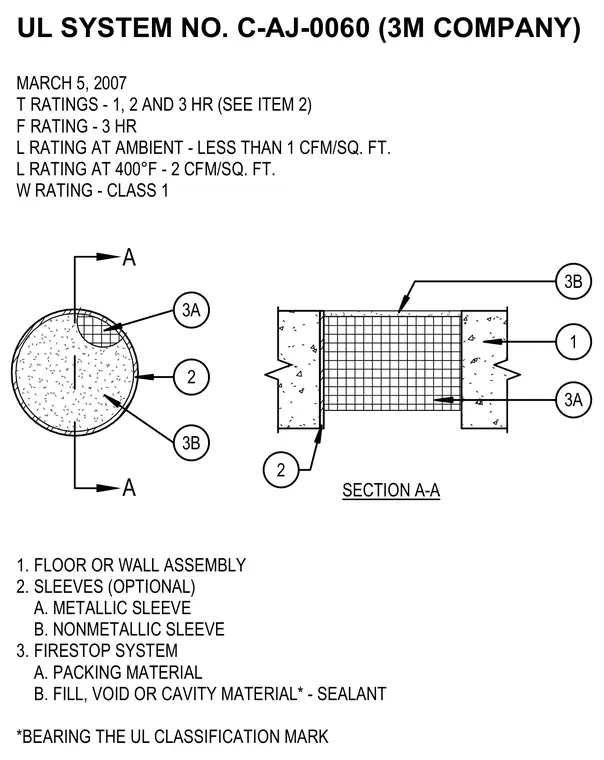

This firestop penetration detail outlines a UL-classified system through a concrete floor or wall assembly. The penetration includes an optional metallic or non-metallic sleeve surrounded by a firestop system consisting of packing material and a UL-classified fill, void, or cavity sealant. The assembly achieves T-ratings up to three hours, an F-rating of three hours, ambient and elevated temperature L-ratings, and a Class 1 W-rating.
