An internally lit exit sign is powered by an emergency power system and remains illuminated at all times. The sign features letter heights of six inches minimum, letter stroke spacing of three-eighths inch minimum, side margins of three-quarters inch minimum, and stroke spacing of two inches minimum except for the letter "I".

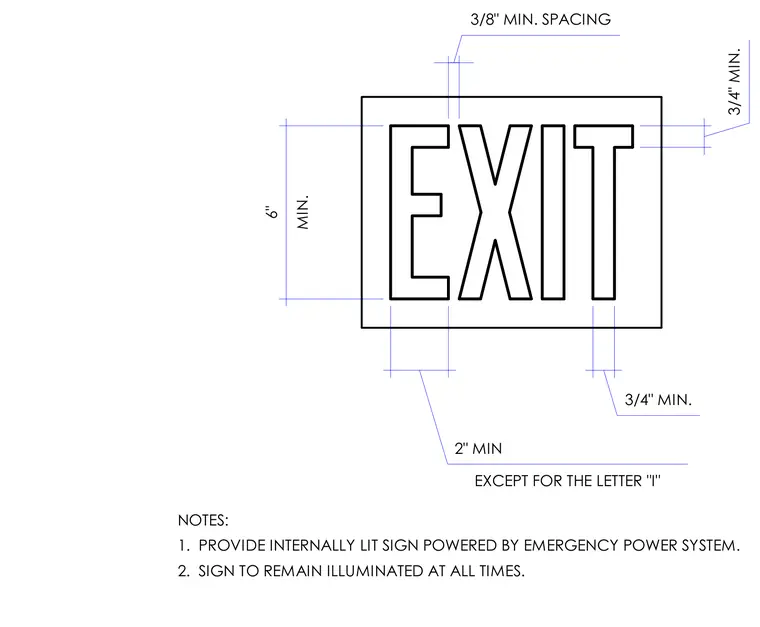

3/8" MIN. SPACING 6" MIN. 3/4" MIN. 3/4" MIN. 2" MIN EXCEPT FOR THE LETTER "I" NOTES: 1. PROVIDE INTERNALLY LIT SIGN POWERED BY EMERGENCY POWER SYSTEM. 2. SIGN TO REMAIN ILLUMINATED AT ALL TIMES.
