Wall-mounted drinking fountains require specific accessibility clearances for wheelchair users. The low fountain spout requires a maximum height of thirty-six inches with a minimum nine-inch toe clearance and twenty-seven-inch knee clearance. The high fountain requires a spout height between thirty-eight and forty-three inches above the finished floor. The clear floor space extends forward with a minimum seventeen-inch knee clearance depth and eighteen-inch minimum depth below the unit. When an alcove depth exceeds twenty-four inches, the alcove width must be a minimum of thirty-six inches.

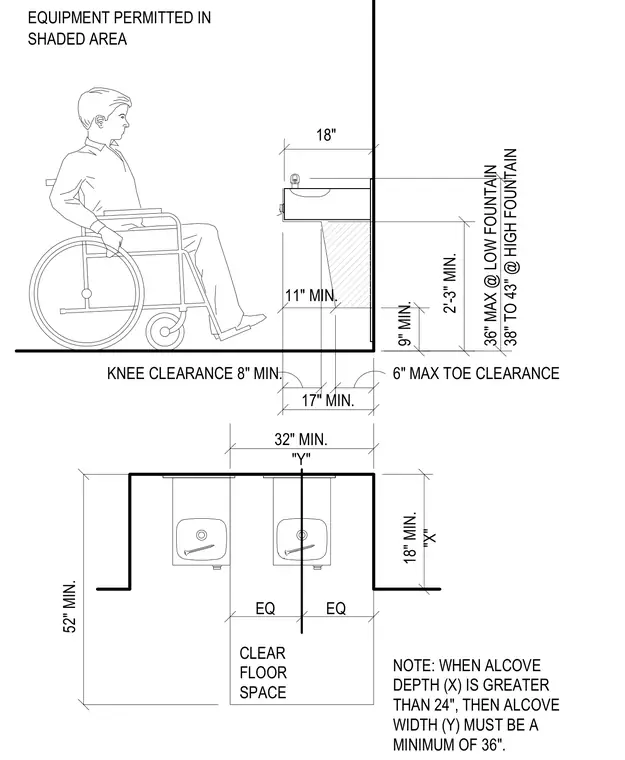

2'-3" MIN. 9" MIN. 36" MAX @ LOW FOUNTAIN 38" TO 43" @ HIGH FOUNTAIN 18" 32" MIN. "Y" 52" MIN. 18" MIN. "X" KNEE CLEARANCE 8" MIN. 6" MAX TOE CLEARANCE CLEAR FLOOR SPACE EQUIPMENT PERMITTED IN SHADED AREA NOTE: WHEN ALCOVE DEPTH (X) IS GREATER THAN 24", THEN ALCOVE WIDTH (Y) MUST BE A MINIMUM OF 36". 17" MIN. 11" MIN. EQ EQ
