Architectural · G-GA3PG

Toilet Room Grab Bar Heights

Elements

About this detail

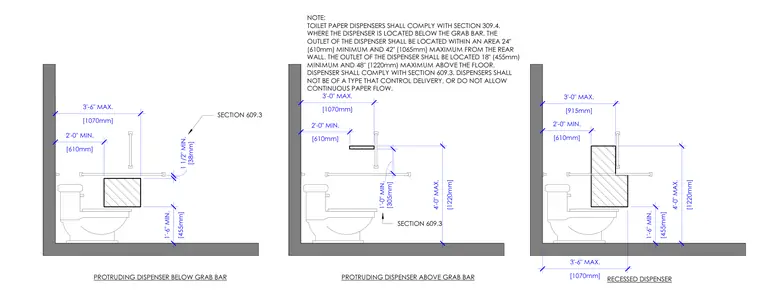

Accessible toilet room layouts showing grab bars and paper dispensers with required mounting heights and clearances. The horizontal grab bar is positioned between 34 inches and 38 inches above the finished floor, with a 1 1/2 inch minimum clearance from the wall. Toilet paper dispensers are located with outlets between 18 inches minimum and 48 inches maximum above the floor, and specific distances from the rear wall depending on whether they are positioned below or above the grab bar. Dispensers must comply with section 309.4 and section 609.3, and must not control delivery or restrict continuous paper flow.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
