A unisex restroom door-mounted identification sign features a one-foot diameter circular backing and an inscribed triangular graphic. The sign consists of a one-quarter-inch thick matte acrylic background panel with back-painted colors designed to contrast with the door finish, finished with typical eased edges. The graphic elements include standard accessibility symbols and contrasting colors for maximum visibility. The assembly is installed at a standard mounting height of sixty inches to the center of the sign.

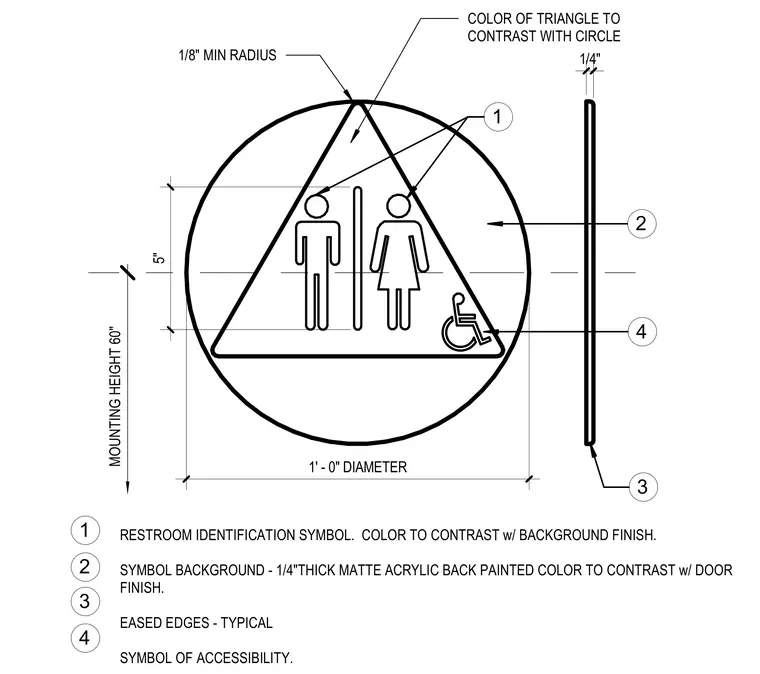

1 RESTROOM IDENTIFICATION SYMBOL. COLOR TO CONTRAST w/ BACKGROUND FINISH. SYMBOL BACKGROUND - 1/4"THICK MATTE ACRYLIC BACK PAINTED COLOR TO CONTRAST w/ DOOR FINISH. EASED EDGES - TYPICAL SYMBOL OF ACCESSIBILITY. 2 3 4 1/4" 5" 1' - 0" DIAMETER MOUNTING HEIGHT 60" 1 2 4 3 1/8" MIN RADIUS COLOR OF TRIANGLE TO CONTRAST WITH CIRCLE
