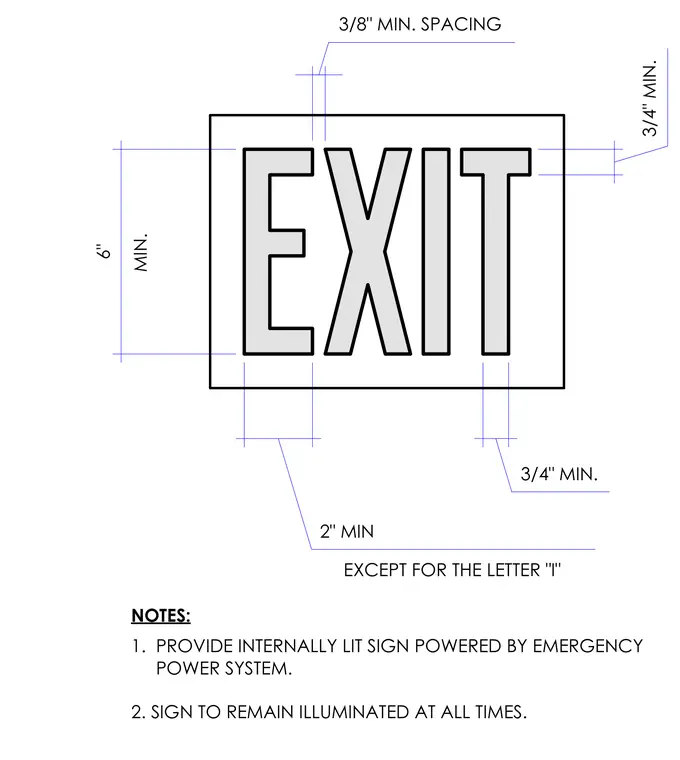

An internally lit exit sign features letter sizing and spacing requirements with a minimum height of 6 inches, a stroke spacing of 3/8 inch minimum, and a 2 inch minimum letter width except for the letter "I". The sign includes a top and side margin of 3/4 inch minimum. The internally lit sign is powered by the emergency power system and is required to remain illuminated at all times.
3/8" MIN. SPACING 6" MIN. 3/4" MIN. 3/4" MIN. 2" MIN EXCEPT FOR THE LETTER "I" NOTES: 1. PROVIDE INTERNALLY LIT SIGN POWERED BY EMERGENCY POWER SYSTEM. 2. SIGN TO REMAIN ILLUMINATED AT ALL TIMES.
