General · G-G2BHW

Two-Way Communication Sign

Elements

About this detail

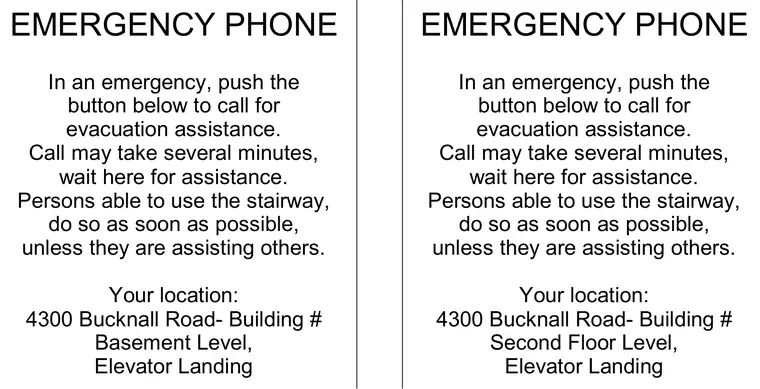

Emergency communication signage provides instructions for evacuation assistance at designated elevator landing locations. The text instructs users to push the button for emergency assistance, wait if calls take several minutes, and direct able persons to use the stairway. Specific location designations identify the building address, level, and floor area such as the basement and second floor elevator landings.
