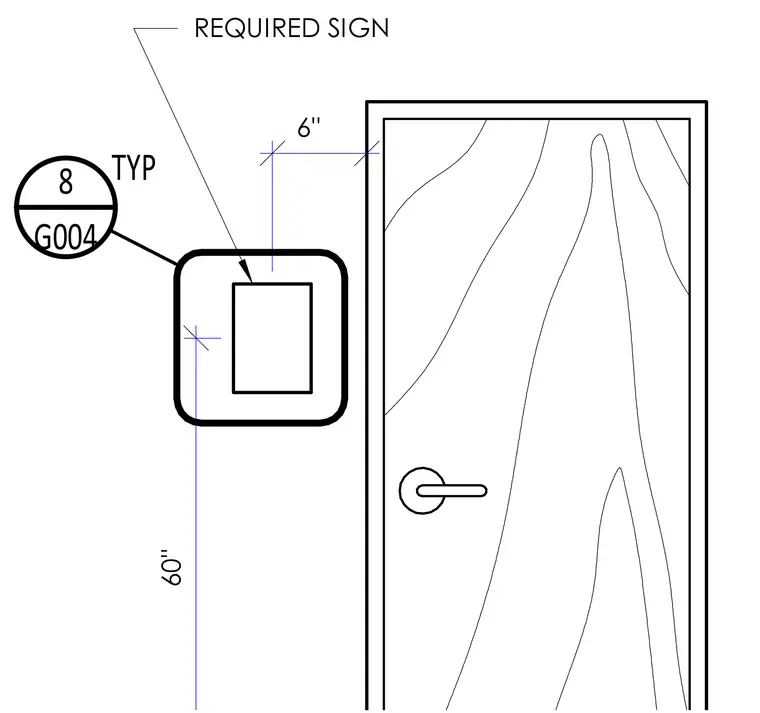

A required sign is mounted adjacent to a single door frame positioned six inches horizontally from the edge of the frame. The centerline of the sign is set at sixty inches from the floor level typical.
