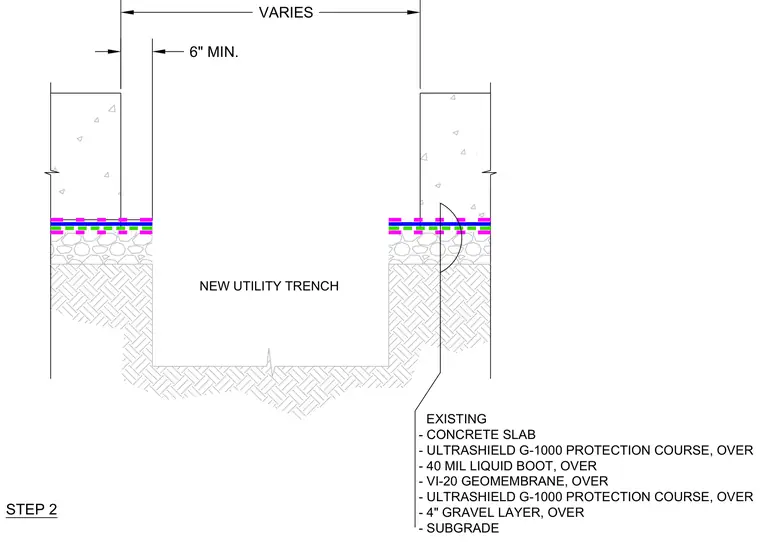

This waterproofing repair assembly transitions a multi-layer membrane system at a new utility trench cut through an existing concrete slab. The layered buildup rests on a subgrade and 4-inch gravel layer, beginning with an Ultrashield G-1000 protection course. A VI-20 geomembrane and 40 mil Liquid Boot membrane are sandwiched between additional layers of Ultrashield G-1000 protection course beneath the existing concrete slab. A minimum 6-inch clearance is maintained at the trench edge with variable spacing for the utility cut.
STEP 2 VARIES 6" MIN. NEW UTILITY TRENCH EXISTING - CONCRETE SLAB - ULTRASHIELD G-1000 PROTECTION COURSE, OVER - 40 MIL LIQUID BOOT, OVER - VI-20 GEOMEMBRANE, OVER - ULTRASHIELD G-1000 PROTECTION COURSE, OVER - 4" GRAVEL LAYER, OVER - SUBGRADE
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
