Wall-mounted and post-mounted handrails are positioned at thirty-four to thirty-eight inches above the stair nosing with required tread extensions. Visually impaired warning striping is provided on stair treads using a contrasting, slip-resistant material. Clearances between the handrail and wall, post dimensions, and extension lengths conform to accessibility standards.

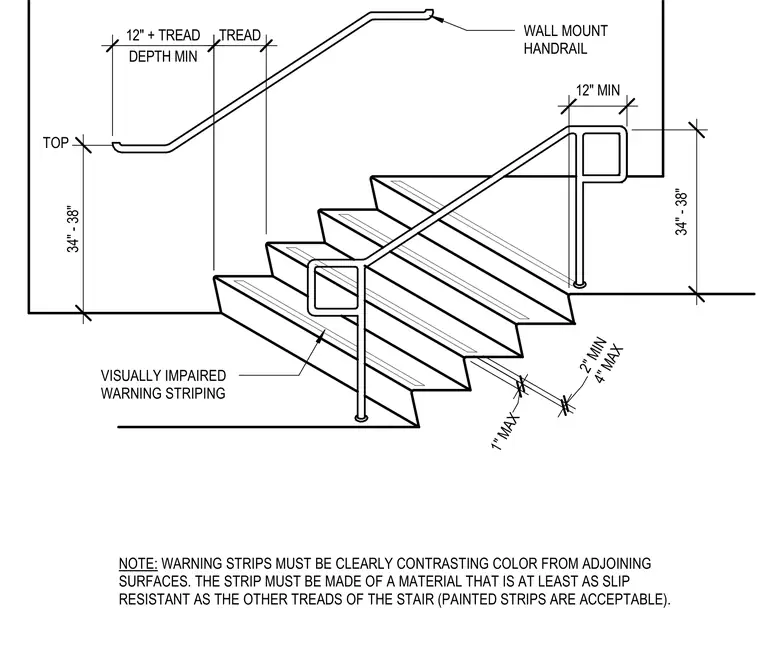

VISUALLY IMPAIRED WARNING STRIPING NOTE: WARNING STRIPS MUST BE CLEARLY CONTRASTING COLOR FROM ADJOINING SURFACES. THE STRIP MUST BE MADE OF A MATERIAL THAT IS AT LEAST AS SLIP RESISTANT AS THE OTHER TREADS OF THE STAIR (PAINTED STRIPS ARE ACCEPTABLE). WALL MOUNT HANDRAIL 34" - 38" TREAD 34" - 38" 1" MAX 2" MIN 4" MAX DEPTH MIN 12" + TREAD 12" MIN TOP
