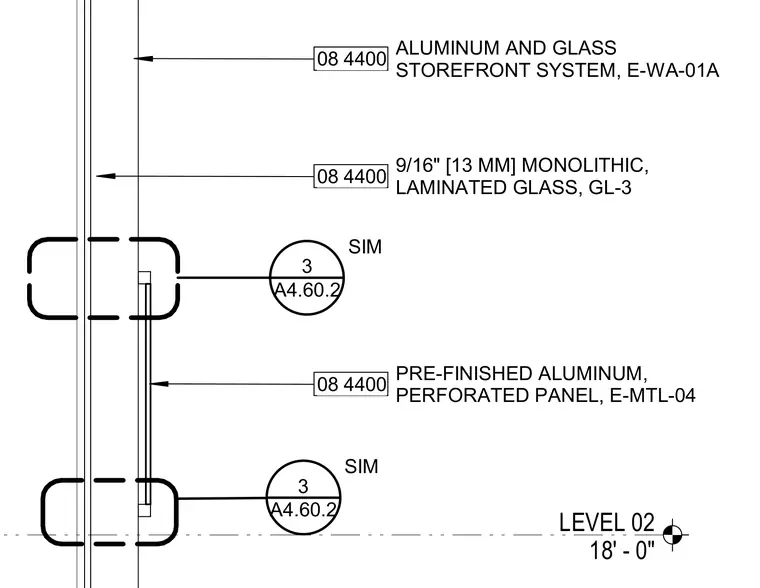

An aluminum and glass storefront system is installed at Level 02 referencing elevation 18 feet 0 inches. The assembly incorporates 9/16 inch monolithic laminated glass designated as GL-3. Pre-finished aluminum perforated panels designated as E-MTL-04 integrate into the storefront system elevation.
LEVEL 02 18' - 0" A4.60.2 3 SIM A4.60.2 3 SIM 08 4400 ALUMINUM AND GLASS STOREFRONT SYSTEM, E-WA-01A 08 4400 9/16" [13 MM] MONOLITHIC, LAMINATED GLASS, GL-3 08 4400 PRE-FINISHED ALUMINUM, PERFORATED PANEL, E-MTL-04
