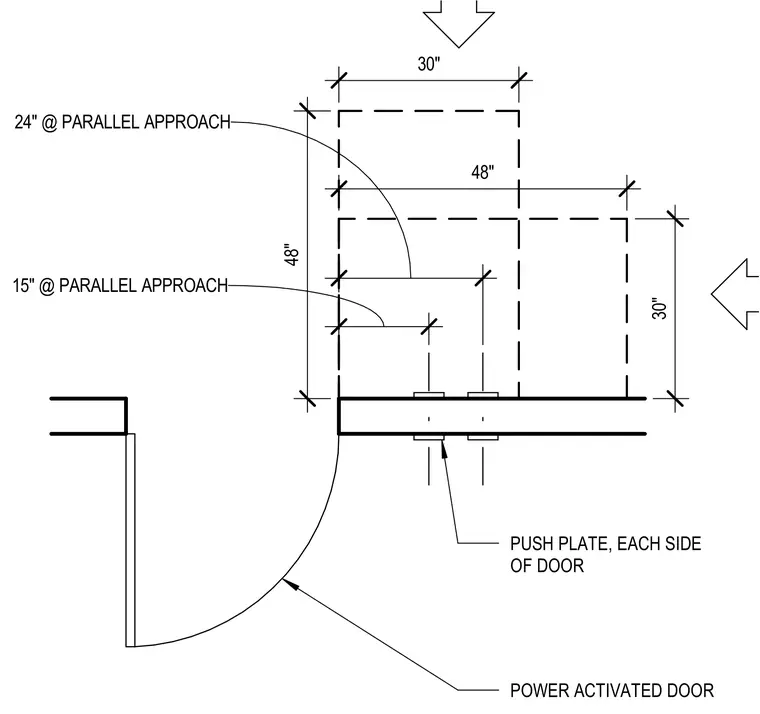

An accessible power activated door requires specific maneuvering clearances and actuator placement to comply with accessibility standards. Push plates are positioned on each side of the door within designated parallel approach zones. Dimensions indicate clearances of twenty-four inches and fifteen inches for parallel approach configurations, along with forty-eight inch and thirty-inch clearance boundaries.
PUSH PLATE, EACH SIDE OF DOOR POWER ACTIVATED DOOR 48" 30" 48" 30" 15" @ PARALLEL APPROACH 24" @ PARALLEL APPROACH
