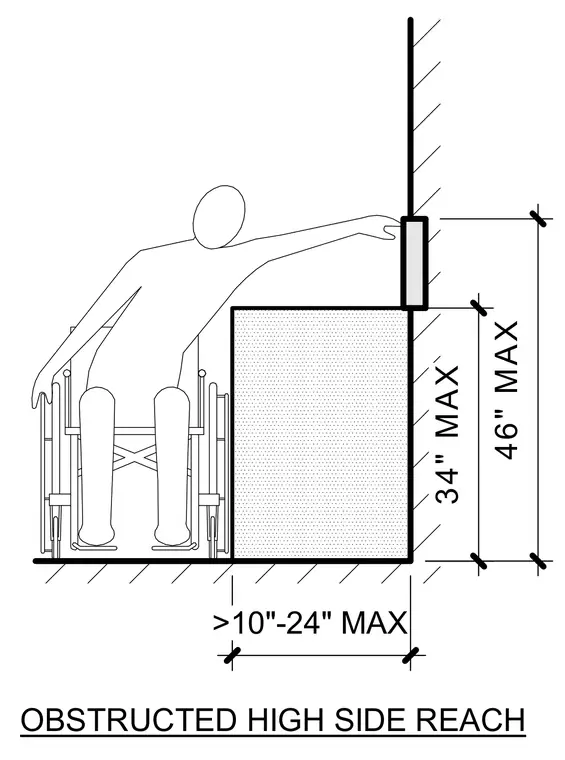

An obstructed high side reach scenario requires specific mounting heights and depth limitations for wall-mounted controls or fixtures. The obstruction depth extends from greater than ten inches to twenty-four inches maximum. The maximum height to the top of the operable part is forty-six inches. The height of the obstruction itself is thirty-four inches maximum from the finished floor.
