General · G-F384P

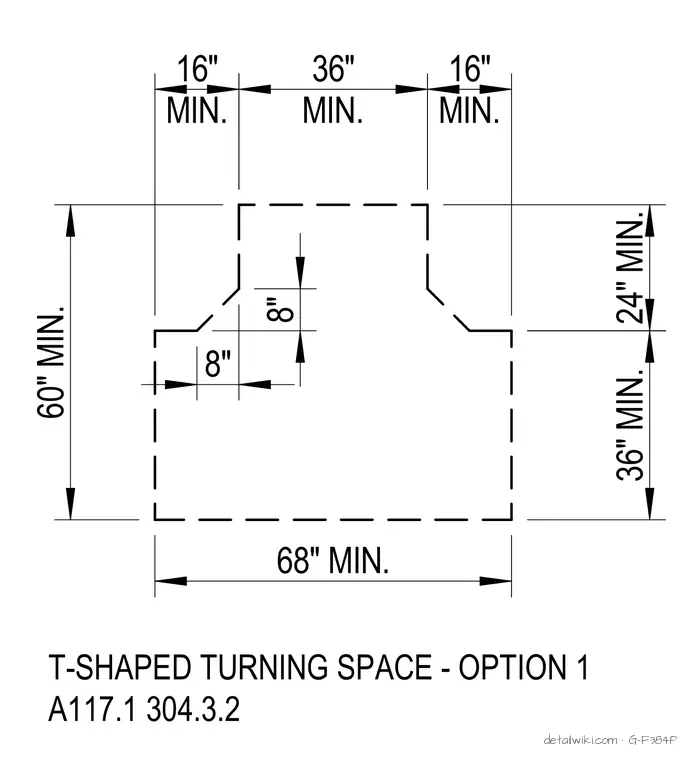

T-Shaped Turning Space

Units: imperial
Sheet: G7
Discipline: General

Materials

Stainless Steel

Text on the drawing

MIN. 16" MIN. 36" MIN. 16" 24" MIN. 60" MIN. 68" MIN. 36" MIN. T-SHAPED TURNING SPACE - OPTION 1 A117.1 304.3.2 8" 8"

Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
