Architectural · G-EP3F3

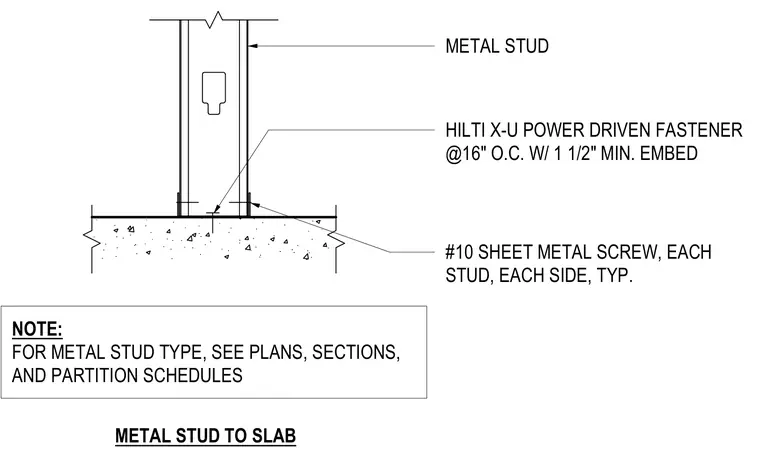

Metal Stud to Slab Detail

Materials

Cold-formed Steel Timber / Wood Metal (misc.)

Elements

Partitions Floors / Slabs Anchors / Embeds

Connections

Embed Plate

About this detail

Cold-formed metal studs bear directly onto a concrete slab, anchored by Hilti X-U power-driven fasteners spaced at sixteen inches on center with one and one-half inch minimum embedment. Number ten sheet metal screws connect each stud on each side. Specific metal stud types are determined by architectural plans, sections, and partition schedules.
