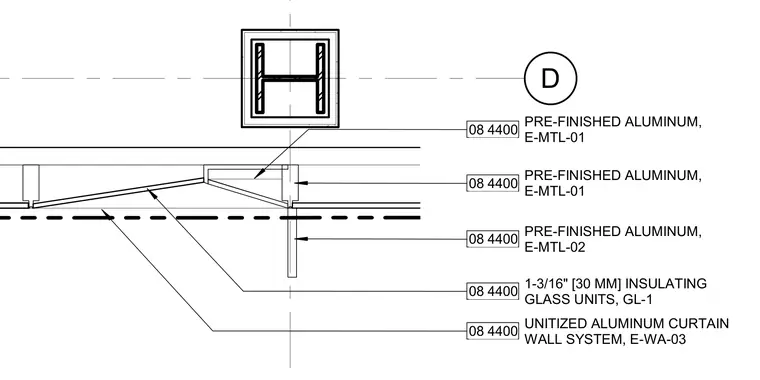

The unitized aluminum curtain wall system comprises pre-finished aluminum framing sections designated as E-MTL-01 and E-MTL-02, glazed with 1-3/16 inch [30 mm] insulating glass units designated as GL-1. The framing assembly integrates with the structural steel column and incorporates pre-finished aluminum components for the exterior wall system E-WA-03.
D 08 4400 UNITIZED ALUMINUM CURTAIN WALL SYSTEM, E-WA-03 08 4400 PRE-FINISHED ALUMINUM, E-MTL-02 08 4400 PRE-FINISHED ALUMINUM, E-MTL-01 08 4400 1-3/16" [30 MM] INSULATING GLASS UNITS, GL-1 08 4400 PRE-FINISHED ALUMINUM, E-MTL-01
