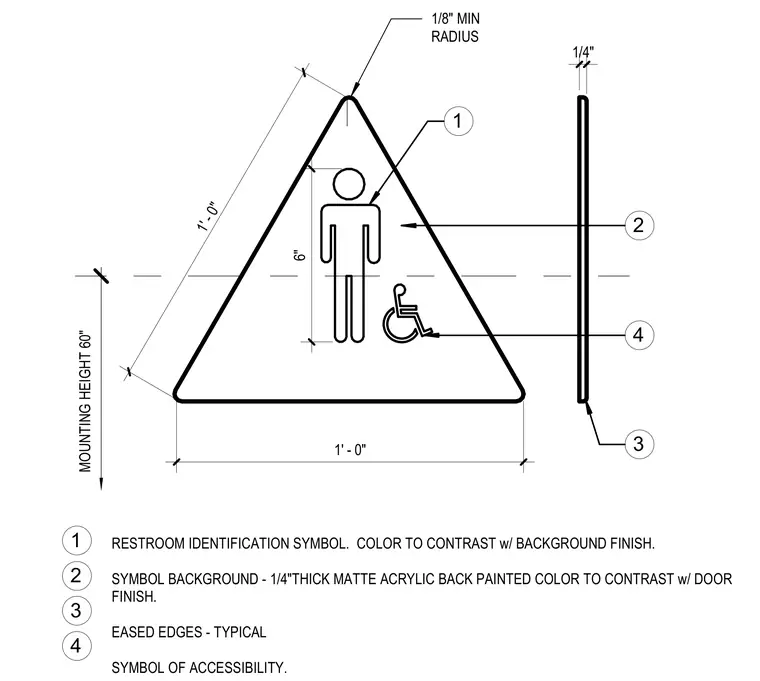

A door-mounted men's restroom identification sign adhering to California Building Code requirements consists of a one-quarter-inch-thick matte acrylic back-painted panel with a contrasting color to the door finish and typical eased edges. The overall triangular assembly measures one foot wide by one foot high with a one-eighth-inch minimum corner radius. A six-inch tall accessibility symbol is centered on the panel, positioned at a mounting height of sixty inches to the centerline.
1 2 4 3 MOUNTING HEIGHT 60" 6" 1' - 0" 1 RESTROOM IDENTIFICATION SYMBOL. COLOR TO CONTRAST w/ BACKGROUND FINISH. SYMBOL BACKGROUND - 1/4"THICK MATTE ACRYLIC BACK PAINTED COLOR TO CONTRAST w/ DOOR FINISH. EASED EDGES - TYPICAL SYMBOL OF ACCESSIBILITY. 2 3 4 1/4" 1' - 0" 1/8" MIN RADIUS
