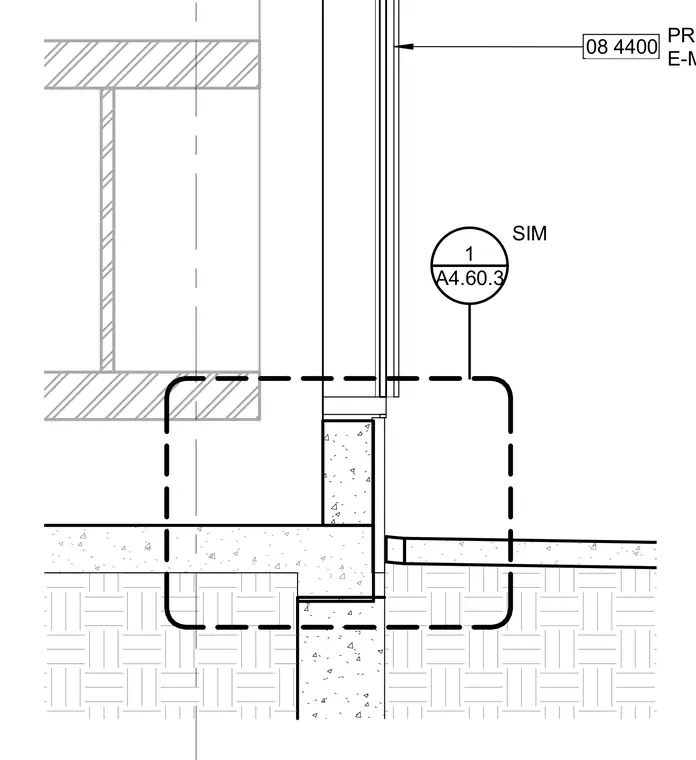

Pre-finished aluminum wall panels with material designation E-MTL-01 are installed at the building base. The assembly intersects with concrete slab-on-grade construction and perimeter foundation walls. A dashed detail callout boundary indicates the connection zone referencing detail 1 on sheet A4.60.3.
