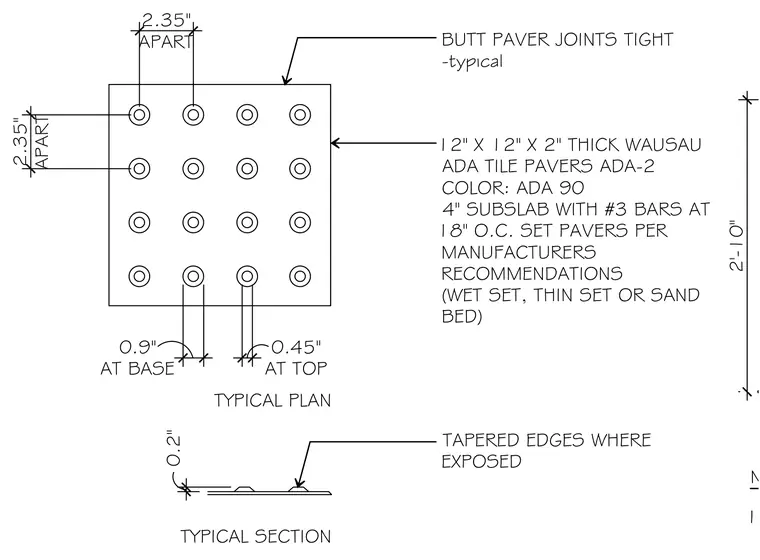

The assembly features twelve by twelve by two inch thick Wausau ADA tile pavers in color ADA 90 with tight butt joints. Tapered edges are provided where exposed. A four inch subslab with number three reinforcing bars at eighteen inches on center supports the installation, set per manufacturer recommendations using wet set, thin set, or sand bed methods.
TYPICAL PLAN TYPICAL SECTION TAPERED EDGES WHERE EXPOSED NOTES: 1. BUTT PAVER JOINTS TIGHT -typical 12" X 12" X 2" THICK WAUSAU ADA TILE PAVERS ADA-2 COLOR: ADA 90 4" SUBSLAB WITH #3 BARS AT 18" O.C. SET PAVERS PER MANUFACTURERS RECOMMENDATIONS (WET SET, THIN SET OR SAND BED) 0.2" 2.35" APART 2.35" APART 0.9" AT BASE 0.45" AT TOP 2'-10"
