A recessed hose bib housing is provided typically at all balconies, featuring a flush locking door and internal housing for maintenance water access. The assembly coordinates with the curtain wall manufacturer requirements and is referenced to Level 08 at elevation one hundred five feet zero inches.

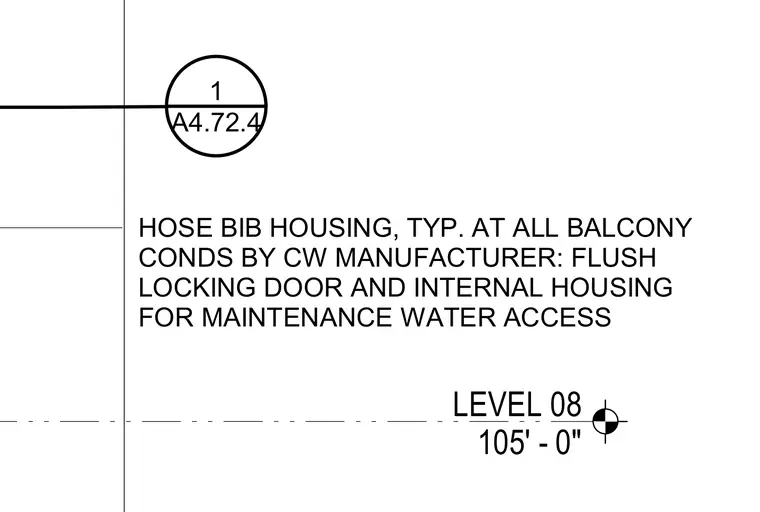

LEVEL 08 105' - 0" A4.72.4 1 HOSE BIB HOUSING, TYP. AT ALL BALCONY CONDS BY CW MANUFACTURER: FLUSH LOCKING DOOR AND INTERNAL HOUSING FOR MAINTENANCE WATER ACCESS
