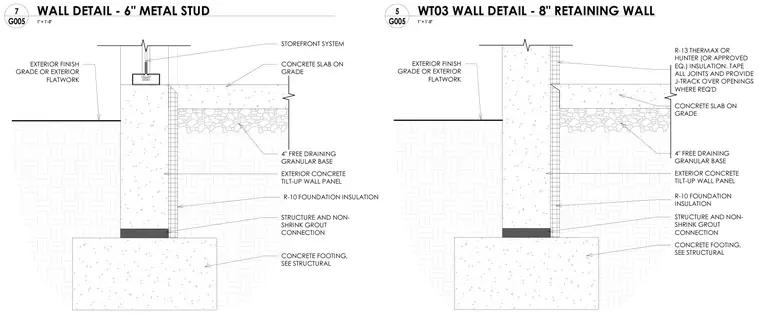

This assembly starts at the bottom with a concrete footing supporting an exterior concrete tilt-up wall panel over a non-shrink grout connection. R-10 foundation insulation lines the interior face of the wall panel below grade. A 4-inch free draining granular base supports the interior concrete slab on grade. Exterior finish grade meets the exterior face of the wall panel, while a storefront system is anchored at the top of the wall section.
CONCRETE SLAB ON GRADE 4" FREE DRAINING GRANULAR BASE STRUCTURE AND NON- SHRINK GROUT CONNECTION CONCRETE FOOTING, SEE STRUCTURAL EXTERIOR CONCRETE TILT-UP WALL PANEL EXTERIOR FINISH GRADE OR EXTERIOR FLATWORK R-13 THERMAX OR HUNTER (OR APPROVED EQ.) INSULATION. TAPE ALL JOINTS AND PROVIDE J-TRACK OVER OPENINGS WHERE REQ'D R-10 FOUNDATION INSULATION CONCRETE SLAB ON GRADE 4" FREE DRAINING GRANULAR BASE STRUCTURE AND NON- SHRINK GROUT CONNECTION CONCRETE FOOTING, SEE STRUCTURAL EXTERIOR CONCRETE TILT-UP WALL PANEL EXTERIOR FINISH GRADE OR EXTERIOR FLATWORK STOREFRONT SYSTEM R-10 FOUNDATION INSULATION 1" = 1'-0" G005 5 WT03 WALL DETAIL - 8" RETAINING WALL 1" = 1'-0" G005 7 WALL DETAIL - 6" METAL STUD
