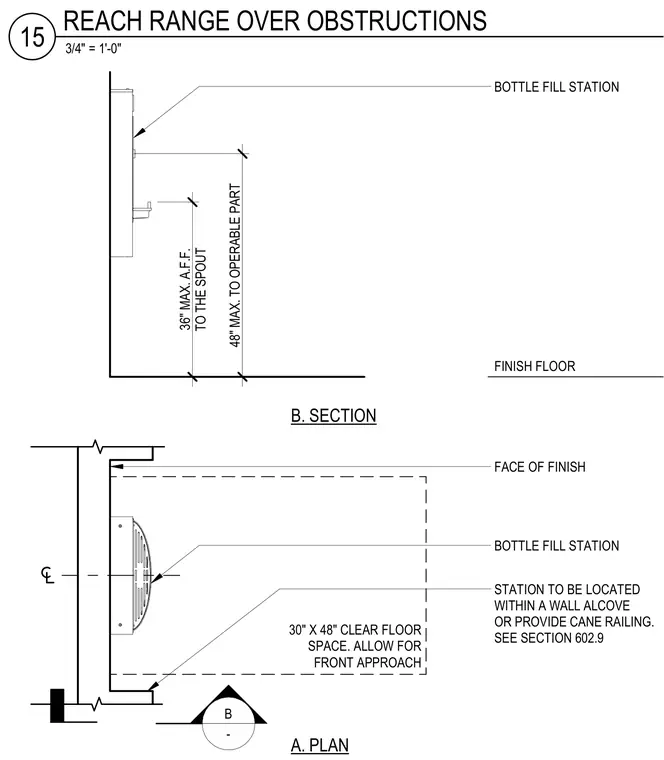

A front approach bottle fill station located within a wall alcove or requiring a cane railing complies with ADA accessibility requirements by providing a thirty by forty-eight inch clear floor space. The operable part is positioned at a maximum of forty-eight inches above the finish floor, and the spout does not exceed thirty-six inches above the finish floor.
FINISH FLOOR B. SECTION B - 30" X 48" CLEAR FLOOR SPACE. ALLOW FOR FRONT APPROACH BOTTLE FILL STATION FACE OF FINISH BOTTLE FILL STATION TO THE SPOUT 36" MAX. A.F.F. 48" MAX. TO OPERABLE PART STATION TO BE LOCATED WITHIN A WALL ALCOVE OR PROVIDE CANE RAILING. SEE SECTION 602.9 A. PLAN 3/4" = 1'-0" 15 REACH RANGE OVER OBSTRUCTIONS
