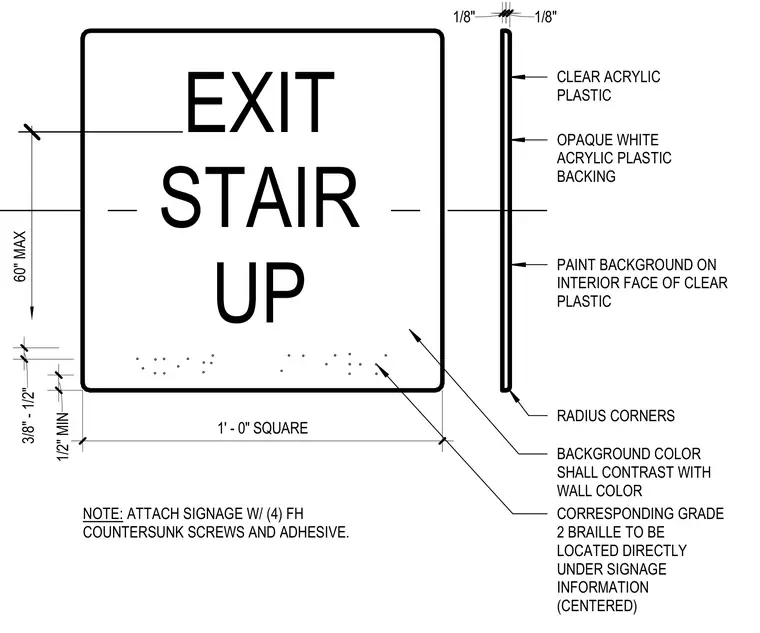

This assembly consists of a one-foot square clear acrylic plastic face with radius corners and an opaque white acrylic plastic backing. The background color is painted on the interior face of the clear plastic and must contrast with the adjacent wall color. Corresponding Grade 2 braille is located directly centered underneath the main signage information. The sign is attached to the wall using four flat-head countersunk screws and adhesive, mounted at a maximum height of sixty inches.
EXIT STAIR UP 1/8" 1/8" 1' - 0" SQUARE CLEAR ACRYLIC PLASTIC OPAQUE WHITE ACRYLIC PLASTIC BACKING PAINT BACKGROUND ON INTERIOR FACE OF CLEAR PLASTIC RADIUS CORNERS BACKGROUND COLOR SHALL CONTRAST WITH WALL COLOR CORRESPONDING GRADE 2 BRAILLE TO BE LOCATED DIRECTLY UNDER SIGNAGE INFORMATION (CENTERED) 1/2" MIN 3/8" - 1/2" NOTE: ATTACH SIGNAGE W/ (4) FH COUNTERSUNK SCREWS AND ADHESIVE. 60" MAX
