Architectural · G-DN927

Wall Mounted Room Signage

Materials

Concrete Steel Timber / Wood Masonry / CMU Gypsum / Drywall

Elements

Walls Doors Floors / Slabs Connections / Plates

About this detail

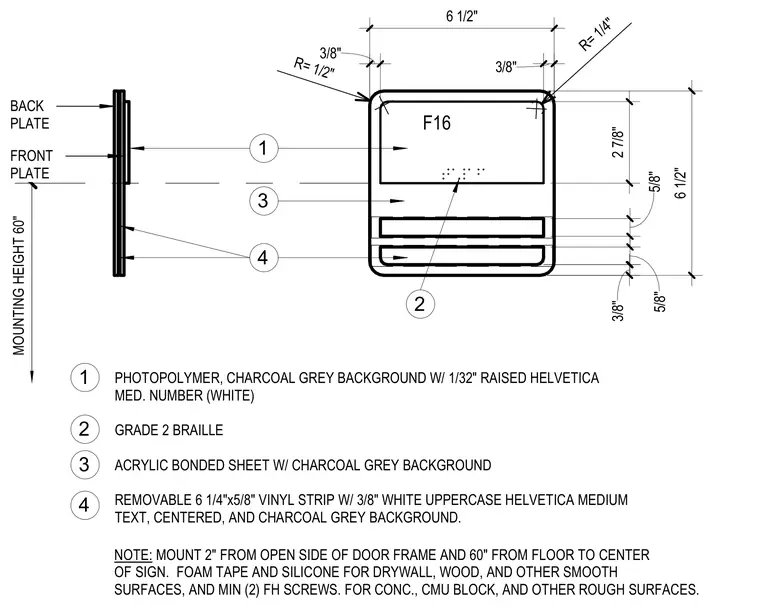

This wall-mounted room signage assembly features an acrylic-bonded sheet with a charcoal grey background, a 1/32-inch raised Helvetica medium white number, and integrated Grade 2 braille. The unit incorporates removable 6-1/4 inch by 5/8 inch vinyl strips with 3/8 inch white uppercase Helvetica medium text centered on a charcoal grey background. The assembly consists of a front plate and back plate measuring 6-1/2 inches square with 1/4-inch and 1/2-inch corner radii. It is installed at a 60-inch mounting height from the floor to the center of the sign and two inches from the open side of the door frame. Attachment is accomplished using foam tape and silicone for drywall, wood, and other smooth surfaces, alongside a minimum of two flathead screws for concrete, concrete masonry units, and other rough surfaces.
