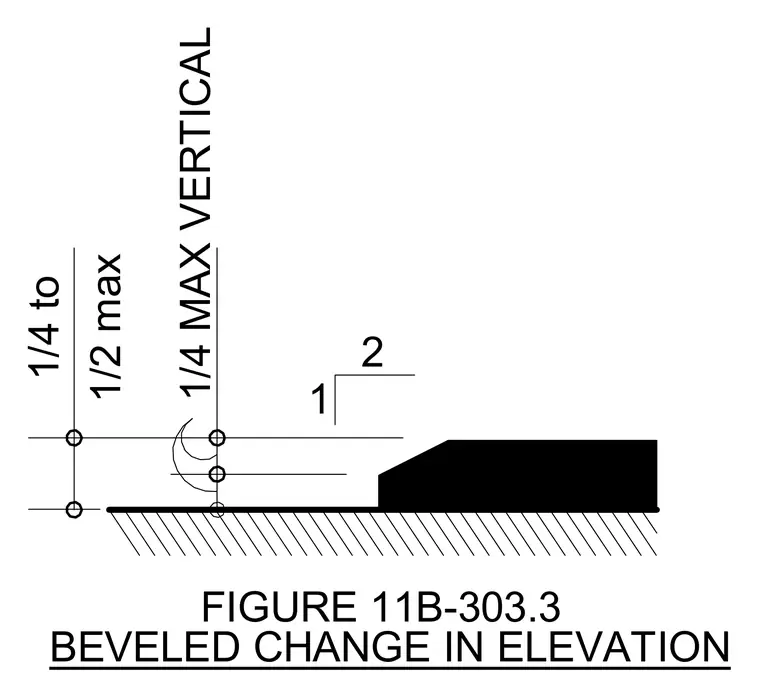

A vertical change in elevation limited to a maximum height of one-quarter inch. Changes exceeding one-quarter inch up to one-half inch maximum are beveled with a slope not steeper than one-to-two.
