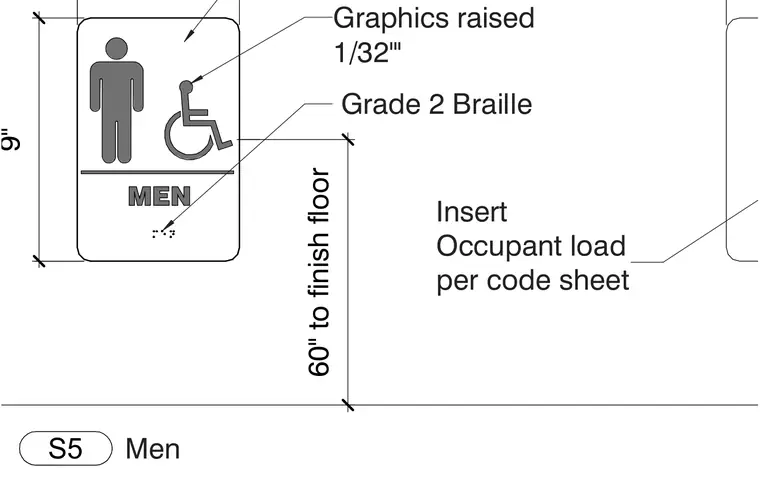

This interior signage detail specifies a Men restroom sign featuring raised white letters and graphics alongside Grade 2 Braille. The sign measures nine inches in height and mounts at sixty inches to the finished floor. Occupant load requirements are indicated to be inserted per the code sheet.
Grade 2 Braille White Letters & Graphics raised 1/32"' Men Insert Occupant load per code sheet 60" to finish floor 9" S5
