Architectural · G-D6JYE

Showers

Elements

About this detail

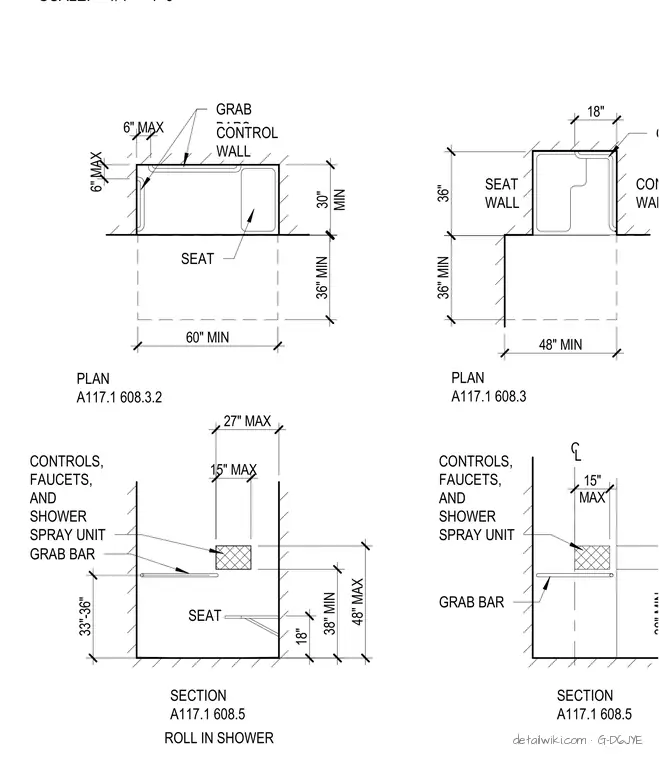

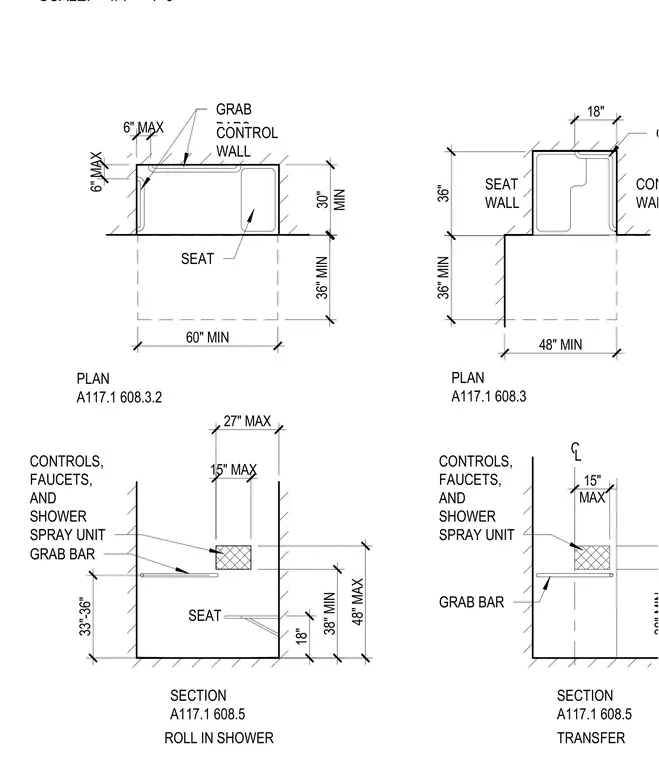

Accessibility layout plans and sections detail roll-in and transfer shower configurations including required interior dimensions, seat locations, and control clearances. The roll-in shower plan requires a minimum sixty-inch by thirty-inch interior with a seat located on the control wall and specific grab bar placements. The transfer shower plan requires a minimum thirty-six-inch by forty-eight-inch interior with a seat wall opposite the control wall. Sections indicate vertical placement limits for controls, faucets, and shower spray units between thirty-eight and forty-eight inches maximum, with grab bars positioned thirty-three to thirty-six inches above the finished floor.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
