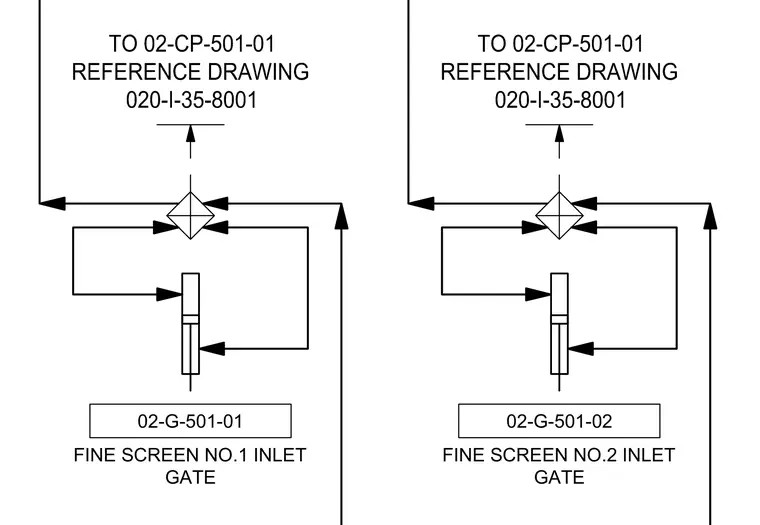

Fine screen inlet gate control diagram referencing drawing 020-I-35-8001 and connecting to control panel 02-CP-501-01. The schematic details the signal and power flow routing for fine screen no. 1 inlet gate 02-G-501-01 and fine screen no. 2 inlet gate 02-G-501-02.
