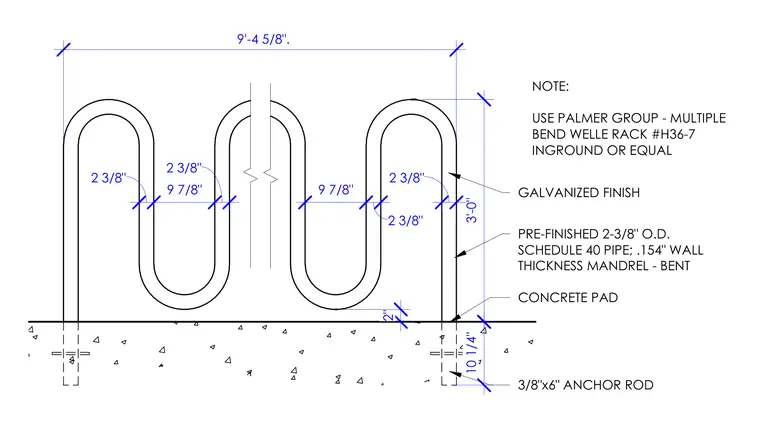

A pre-finished two-and-three-eighths-inch outside diameter schedule forty pipe with a zero-point-one-five-four-inch wall thickness is mandrel-bent to form a multiple-bend bike rack. The rack is supported by an inground mounting system secured into a concrete pad with three-eighths-inch by six-inch anchor rods. The assembly features a galvanized finish and follows product specifications for a Palmer Group multiple bend well rack model H-thirty-six-dash-seven or equal.
9'-4 5/8". 3'-0" 2" 10 1/4" 2 3/8" 9 7/8" 2 3/8" 2 3/8" 9 7/8" 2 3/8" PRE-FINISHED 2-3/8" O.D. SCHEDULE 40 PIPE; .154" WALL THICKNESS MANDREL - BENT CONCRETE PAD 3/8"x6" ANCHOR ROD NOTE: USE PALMER GROUP - MULTIPLE BEND WELLE RACK #H36-7 INGROUND OR EQUAL GALVANIZED FINISH
