Waterproofing Membrane Repair Saw-Cut Detail

Materials

Elements

About this detail

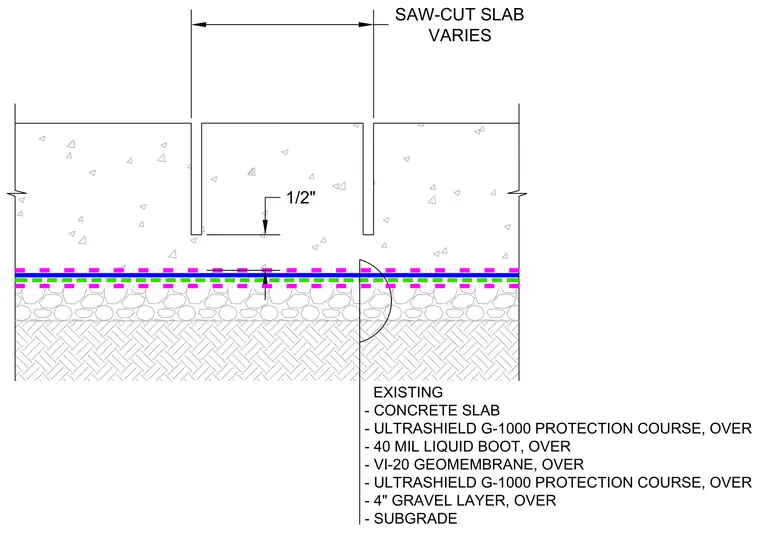

An existing concrete slab features a variable-width saw-cut stopping one-half inch above the underlying waterproofing assembly. The multi-layer waterproofing system consists of an Ultrashield G-1000 protection course over a forty-mil liquid boot, a VI-20 geomembrane, and a second layer of Ultrashield G-1000 protection course. This membrane assembly rests upon a four-inch gravel layer placed directly over the subgrade.
