Three-quarter-inch fire-retardant treated plywood blocking is nested between wood studs at a height of ninety-six inches. The blocking provides structural support for wall-mounted toilet partitions and urinal screens, with horizontal dimensions sized per plan.

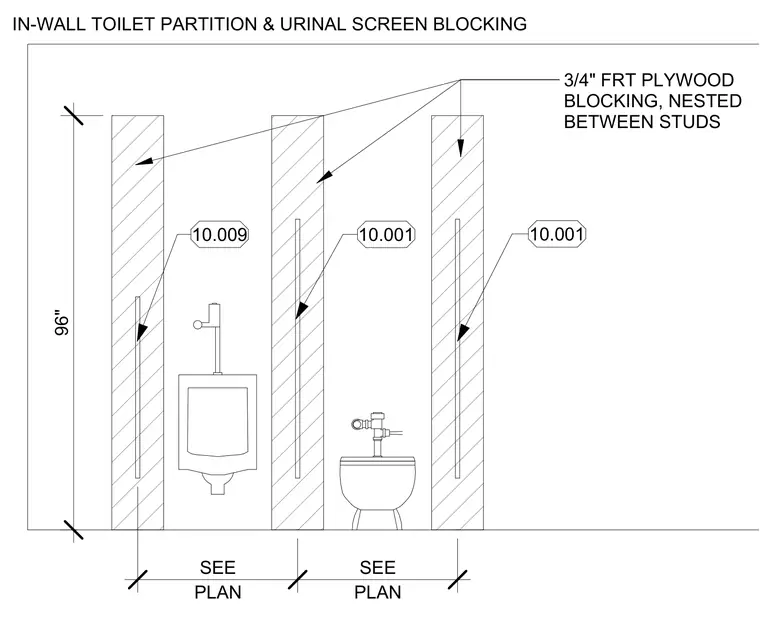

IN-WALL TOILET PARTITION & URINAL SCREEN BLOCKING 3/4" FRT PLYWOOD BLOCKING, NESTED BETWEEN STUDS 96" PLAN SEE PLAN SEE 10.009 10.001 10.001
