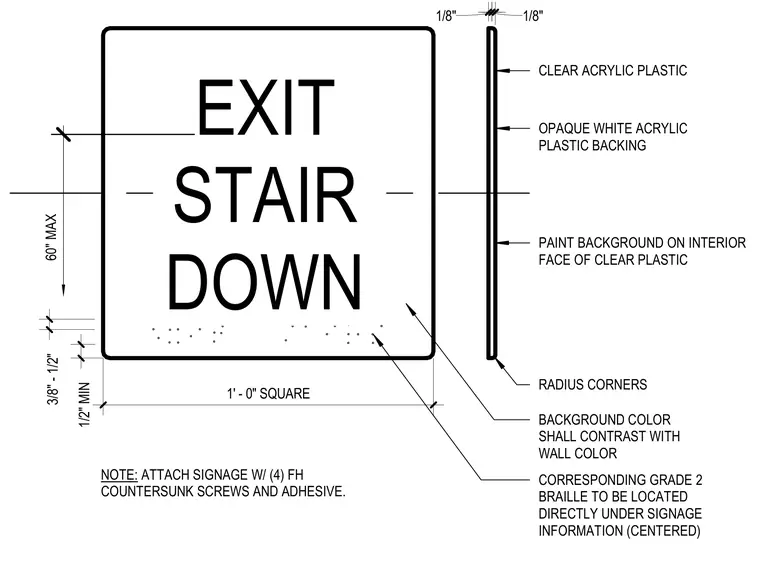

A square tactile exit stair sign composed of a clear acrylic plastic face with radius corners and a painted background on its interior face. An opaque white acrylic plastic backing is applied behind the clear plastic. Corresponding Grade 2 Braille is located directly centered underneath the signage information. The sign is attached to the wall using four flat-head countersunk screws and adhesive.
EXIT STAIR DOWN 1/8" 1/8" 1' - 0" SQUARE CLEAR ACRYLIC PLASTIC OPAQUE WHITE ACRYLIC PLASTIC BACKING PAINT BACKGROUND ON INTERIOR FACE OF CLEAR PLASTIC RADIUS CORNERS BACKGROUND COLOR SHALL CONTRAST WITH WALL COLOR CORRESPONDING GRADE 2 BRAILLE TO BE LOCATED DIRECTLY UNDER SIGNAGE INFORMATION (CENTERED) 1/2" MIN 3/8" - 1/2" NOTE: ATTACH SIGNAGE W/ (4) FH COUNTERSUNK SCREWS AND ADHESIVE. 60" MAX
