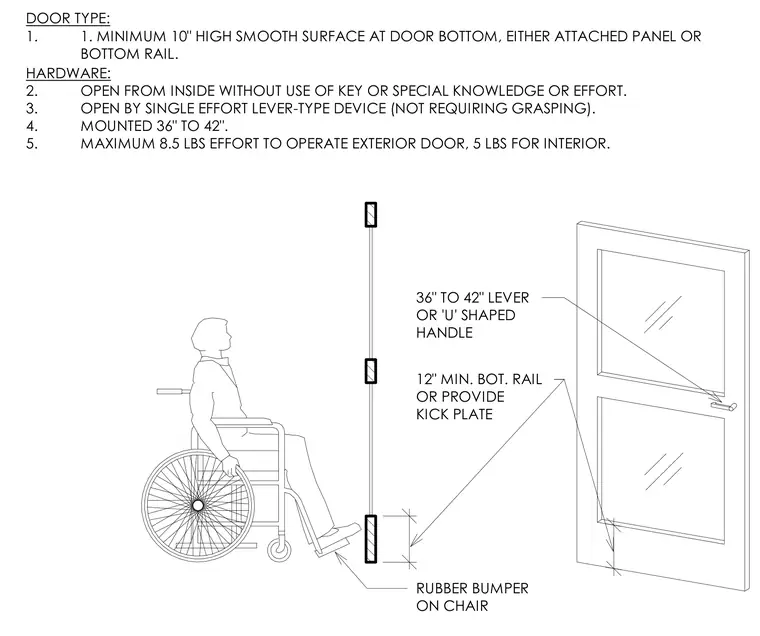

Accessibility door requirements specify a lever or U-shaped handle mounted thirty-six to forty-two inches above the finished floor, operable with a maximum force of eight and a half pounds for exterior doors and five pounds for interiors. The door features a minimum twelve-inch bottom rail or a kick plate providing a ten-inch high smooth surface at the bottom. A rubber bumper is mounted on the wheelchair to protect the door assembly during operation.
36" TO 42" LEVER OR 'U' SHAPED HANDLE 12" MIN. BOT. RAIL OR PROVIDE KICK PLATE RUBBER BUMPER ON CHAIR DOOR TYPE: 1. 1. MINIMUM 10" HIGH SMOOTH SURFACE AT DOOR BOTTOM, EITHER ATTACHED PANEL OR BOTTOM RAIL. HARDWARE: 2. OPEN FROM INSIDE WITHOUT USE OF KEY OR SPECIAL KNOWLEDGE OR EFFORT. 3. OPEN BY SINGLE EFFORT LEVER-TYPE DEVICE (NOT REQUIRING GRASPING). 4. MOUNTED 36" TO 42". 5. MAXIMUM 8.5 LBS EFFORT TO OPERATE EXTERIOR DOOR, 5 LBS FOR INTERIOR.
