General · G-C344D

Accessible Parking Signage Mounting and Details

About this detail

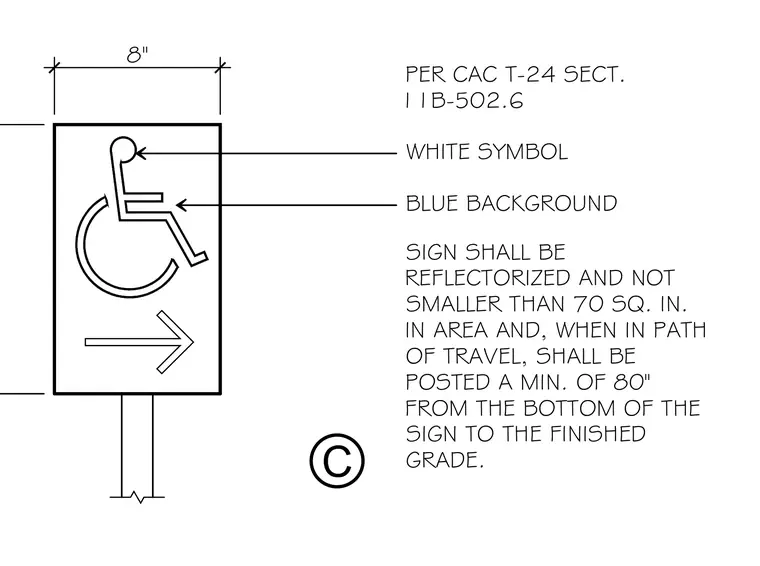

An accessible parking sign features a white symbol on a blue background with a directional arrow, mounted on a vertical post. The sign is eight inches wide, reflectorized, and has a minimum area of seventy square inches. It is installed at a minimum height of eighty inches from the bottom of the sign to the finished grade when located in a path of travel, complying with CAC Title 24 Section 11B-502.6.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
