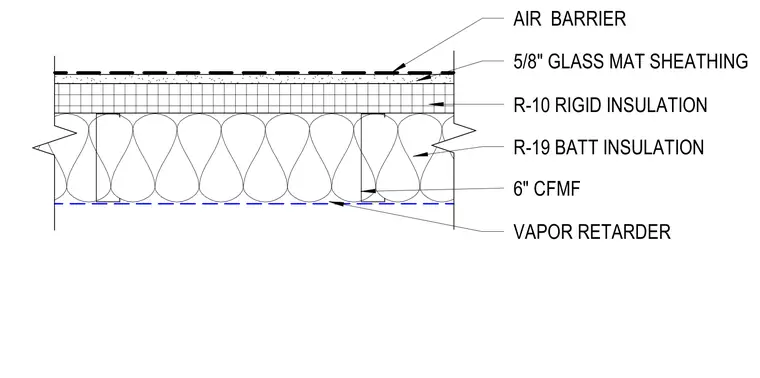

The assembly consists of 6-inch cold-formed metal framing studs with R-19 batt insulation installed in the stud cavities. Exterior side receives 5/8-inch glass mat sheathing, an air barrier, and R-10 rigid insulation. Interior side features a vapor retarder.
6" CFMF 5/8" GLASS MAT SHEATHING VAPOR RETARDER R-19 BATT INSULATION AIR BARRIER R-10 RIGID INSULATION
