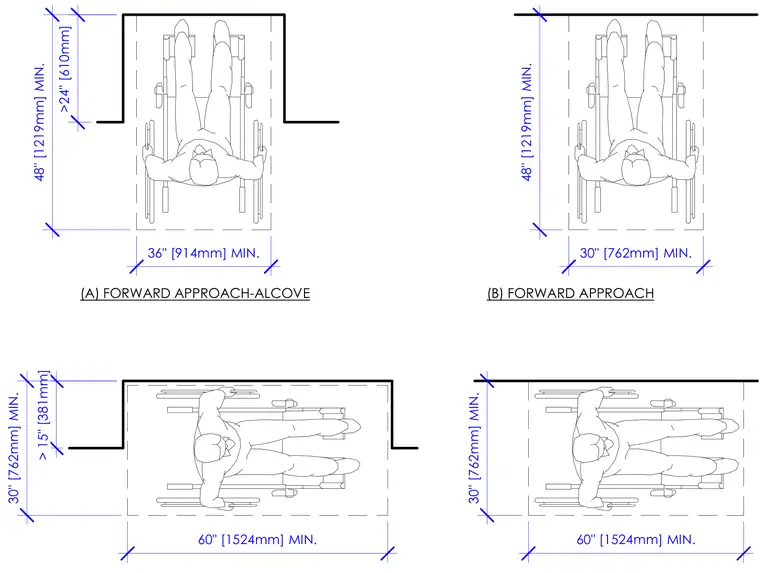

Wheelchair forward approach clearances require a minimum clear floor space of thirty inches wide by forty-eight inches deep. Alcove configurations deeper than twenty-four inches require a minimum clear width of thirty-six inches. Alternative forward approaches without alcoves maintain the thirty-inch minimum width requirement. These clearances ensure adequate accessibility for users approaching fixtures and workspaces head-on.
(A) FORWARD APPROACH-ALCOVE (B) FORWARD APPROACH >24" [610mm] 48" [1219mm] MIN. 36" [914mm] MIN. 48" [1219mm] MIN. 30" [762mm] MIN. > 15" [381mm] 30" [762mm] MIN. 30" [762mm] MIN. 60" [1524mm] MIN. 60" [1524mm] MIN.
