Architectural · G-BVF5E

Reach Range Over Obstructions

Elements

About this detail

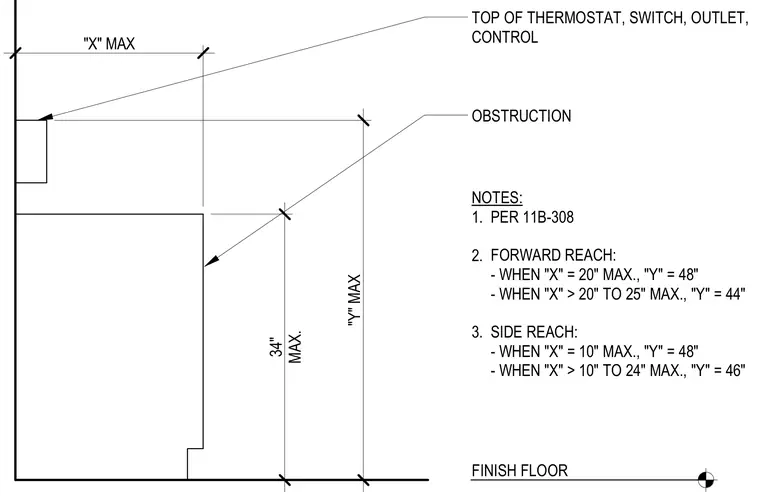

Maximum allowable mounting heights and forward or side reach ranges for thermostats, switches, outlets, and controls located above an obstruction. The obstruction depth is measured as distance X from the finish wall, while the control height is measured as distance Y from the finish floor. For forward reach, when depth X is twenty inches maximum, height Y is restricted to forty-eight inches maximum. When depth X exceeds twenty inches up to twenty-five inches maximum, height Y drops to forty-four inches maximum. For side reach, when depth X is ten inches maximum, height Y is forty-eight inches maximum, and when depth X exceeds ten inches up to twenty-four inches maximum, height Y is forty-six inches maximum.
