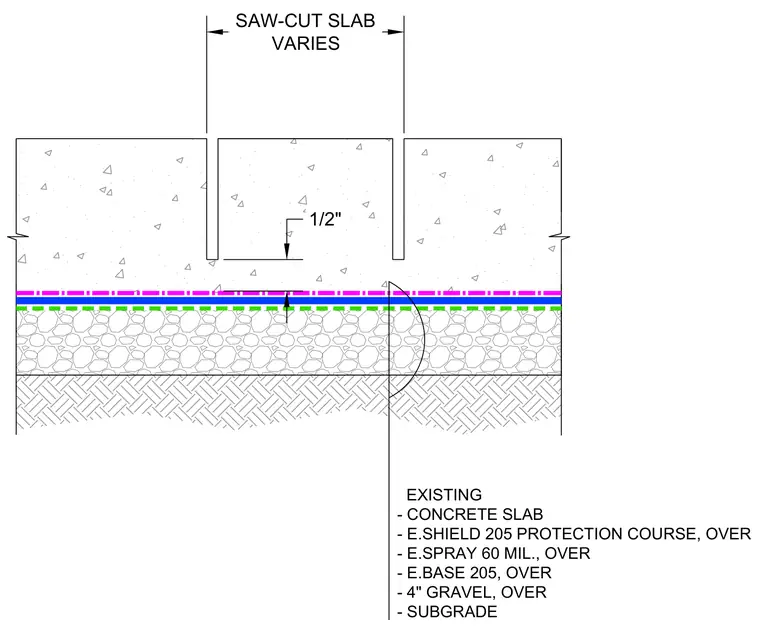

An existing concrete slab features variable saw-cut joints penetrating to a half-inch clearance above the underlying waterproofing layers. The membrane assembly consists of a protection course, a sixty-mil spray-applied membrane, and a base sheet installed over four inches of gravel and subgrade.
SAW-CUT SLAB VARIES 1/2" EXISTING - CONCRETE SLAB - E.SHIELD 205 PROTECTION COURSE, OVER - E.SPRAY 60 MIL., OVER - E.BASE 205, OVER - 4" GRAVEL, OVER - SUBGRADE
