Architectural · G-BFQCJ

Toilet Room Signage

Materials

Elements

About this detail

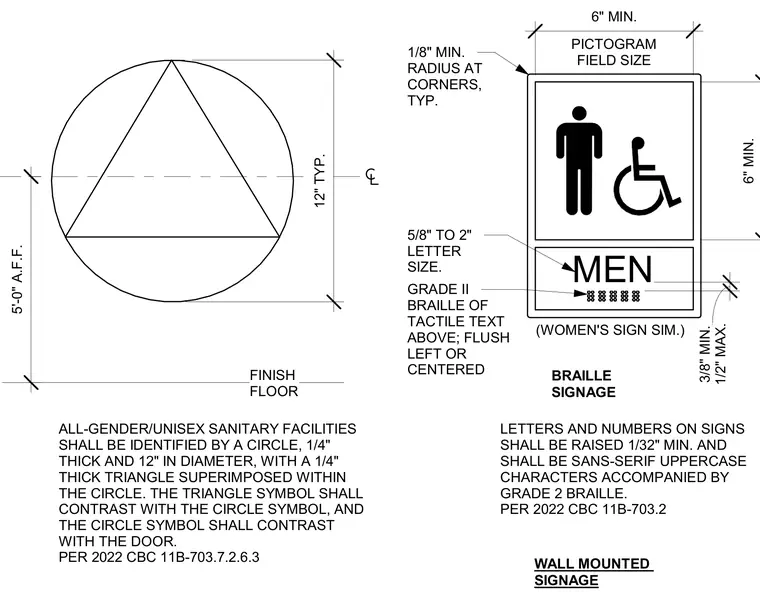

Restroom signage details specify mounting heights and dimensional requirements for accessible facilities in accordance with accessibility codes. All-gender facilities require a twelve-inch diameter circle with a superimposed triangle, featuring a one-quarter-inch thickness and contrasting colors. Wall-mounted signs feature a six-inch minimum pictogram field size, raised sans-serif uppercase characters between five-eighths and two inches in size, and Grade 2 braille positioned below tactile text. Signs are mounted at five feet above the finished floor to the centerline, with corner radii of one-eighth inch minimum.
