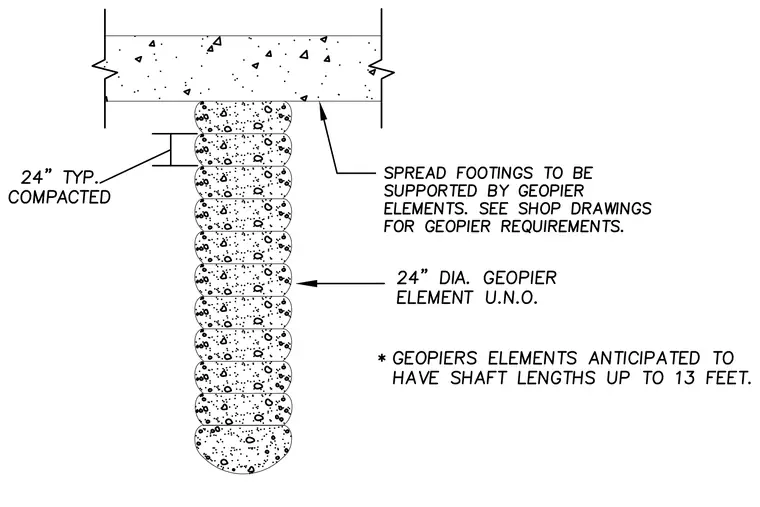

A spread footing is supported by a twenty-four inch diameter Geopier element unless noted otherwise. The compacted aggregate pier features twenty-four inch typical compacted lifts and is anticipated to have shaft lengths up to thirteen feet. Shop drawings dictate specific Geopier requirements.
