ADA Door Clearance Requirements and Approach Diagrams

About this detail

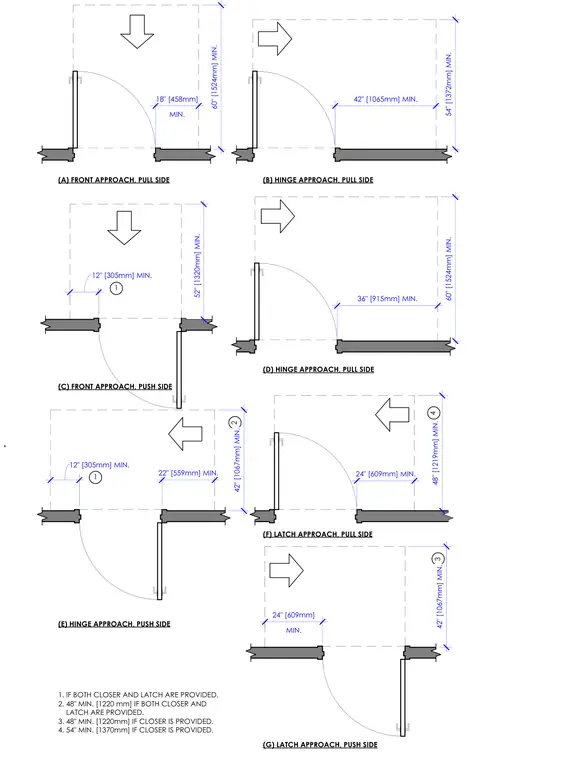

These floor plan diagrams illustrate the minimum push and pull side maneuvering clearances required for door approaches, including front, hinge, and latch approach configurations. Dimensions indicate required clear floor space perpendicular and parallel to the doorway based on approach direction and whether a closer or latch is provided.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
