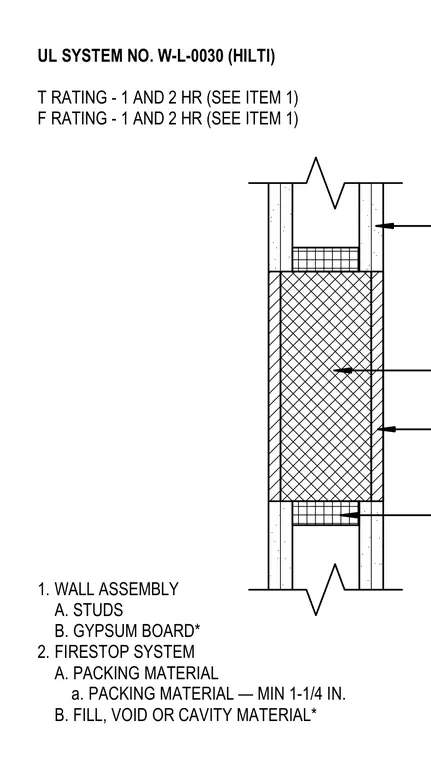

A UL firestop system is installed within a gypsum board wall assembly featuring metal studs and gypsum board. The firestop system consists of a minimum 1-1/4 inch packing material and a fill, void, or cavity material. The assembly achieves a one and two-hour T and F rating per UL System No. W-L-0030 using Hilti materials.
1. WALL ASSEMBLY A. STUDS B. GYPSUM BOARD* 2. FIRESTOP SYSTEM A. PACKING MATERIAL a. PACKING MATERIAL — MIN 1-1/4 IN. B. FILL, VOID OR CAVITY MATERIAL* UL SYSTEM NO. W-L-0030 (HILTI) T RATING - 1 AND 2 HR (SEE ITEM 1) F RATING - 1 AND 2 HR (SEE ITEM 1)
